Choose the support.
Keep the same adapter.

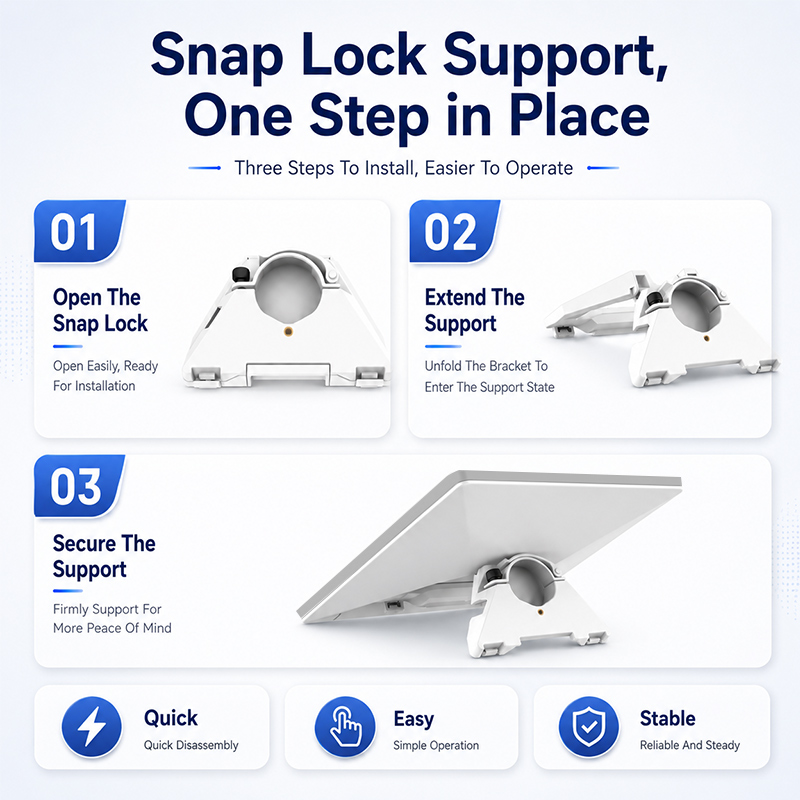

Fold-out tabletop base
Release the underside support, extend it fully and place the assembly on a stable, level surface for a compact temporary setup.
Compatible pole interface
Raise the release lever, insert a separately specified pole, set the position and secure the retaining mechanism.
Starlink Mini, support pole and location-specific mounting hardware are not stated as included.
Four actions.
One secure fit.

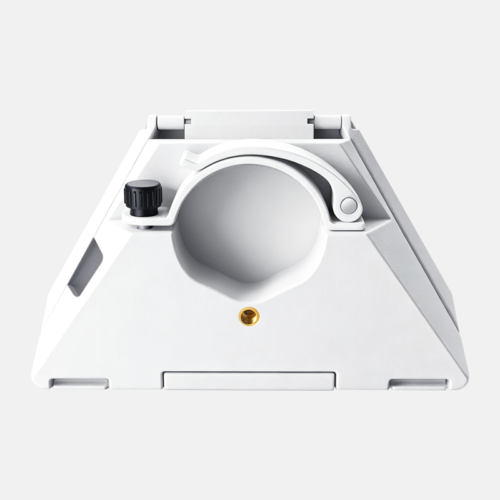

The lever and retaining knob control the pole interface. This XL0178 configuration does not include a keyed security lock.
Attach the adapter
Fit the product-side bracket to the compatible Starlink Mini and check that the attachment points are fully engaged.

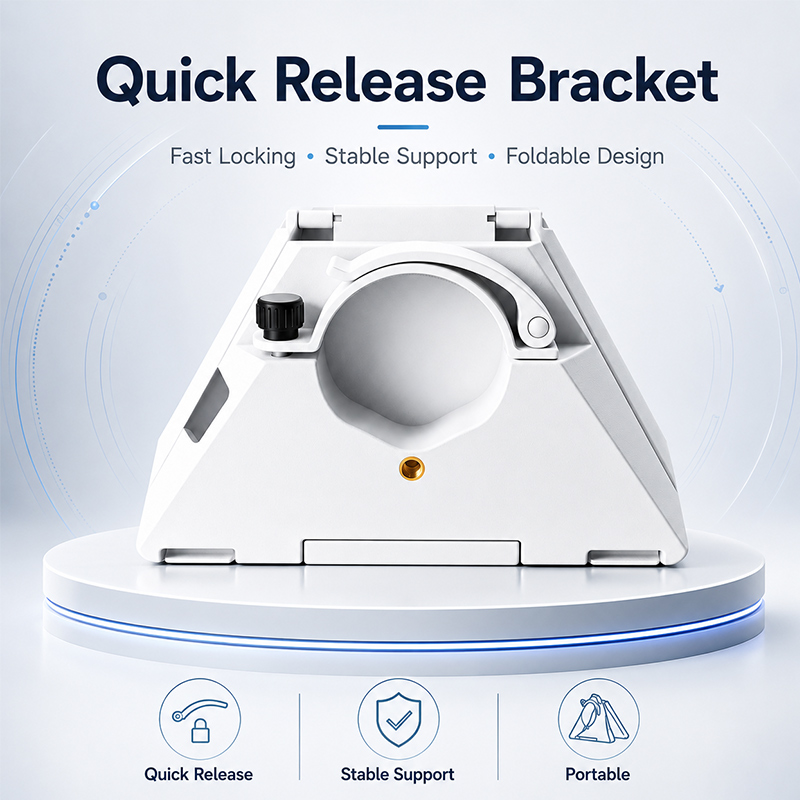

Release the interface
Loosen the retaining knob and raise the quick-release lever before inserting or removing a pole.
Set the position
Insert a compatible pole to the required position. The supported pole diameter was not specified in the supplied material.
Secure and pull-test
Press the lever down, tighten the knob and verify the complete connection before deployment.

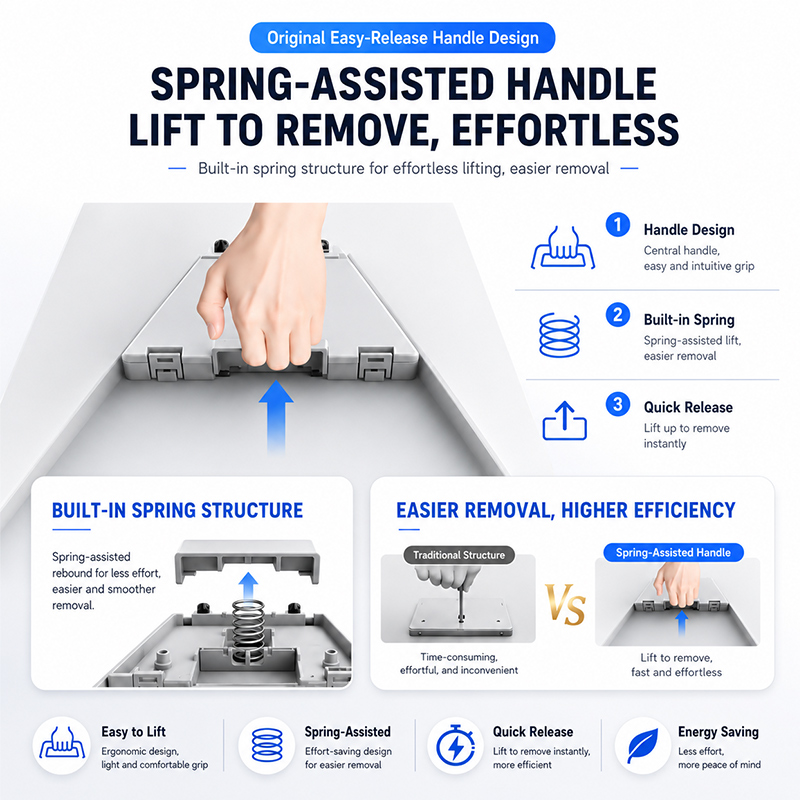

Lift. Release. Redeploy.
01 / GRIP
Central handle
The integrated handle provides a dedicated lifting point for product removal.
02 / ASSIST
Spring-assisted return
The supplied design shows a built-in spring structure supporting smoother handle movement.
03 / REMOVE
Faster changeover
Lift the handle to support device release when changing or packing the installation.
Compact by design.
Only information visible in the supplied product artwork is listed here.
| Product SKU | XL0178 |
|---|---|
| Reference model | QRM02 |
| Product type | 2-in-1 adjustable quick-release base adapter |
| Intended device | Starlink Mini |
| Version | White, non-key-locking configuration |
| Approximate dimensions | Base width 17cm; upper width 7.5cm; height 10.9cm |
| Materials | Aluminium, PC and ABS |
Measurements in the supplied artwork are manually taken and may vary slightly. No verified load, pole-diameter, wind, vibration, waterproof or corrosion rating was supplied.
The base is one component.
The installation is a system.
Portable, roof, vehicle and marine scenes require different poles, anchors and safety measures. Confirm the complete assembly—not only the adapter.
Check surface level, stability and cable routing.
Specify structural attachment, sealing and wind resistance separately.
Validate vibration, corrosion, speed and secondary retention requirements.
Which deployment mode does your project need?
Send us your intended surface or pole setup, estimated quantity and destination country. We will help confirm the current configuration, package contents and quotation details.
